Laser nanostructuring of silicon for photonic and optoelectronic applications

Irradiation of silicon by a big number of laser pulses in a liquid or gas environment creates quasi-periodic nanostructures or microstructures on the surface of the material, depending on the irradiation conditions and the surrounding medium. This effect was first discovered at the lab of Professor Eric Mazur at Harvard University. Due to the unique electrical, optical, and mechanical properties of the laser-processed areas, microstructured and nanostructured silicon finds applications in the fabrication of optoelectronic devices, as well as a plasmonic substrate for SERS spectroscopy and optical trapping.

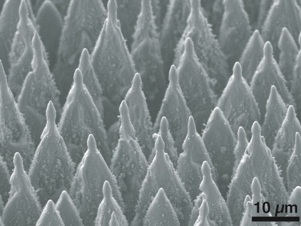

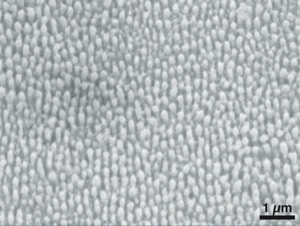

Microstructured and nanostructured silicon surfaces with nanosecond and femtosecond laser systems, respectively.

Plasmonic optical trapping

Optical tweezers are widely employed for contactless manipulation of microparticles and nanoparticles for various applications. However, in the case of nanoparticles, the optical trapping force decreases abruptly with the size of the trapped particle, resulting in inefficient and unstable trapping conditions. Plasmonic optical tweezers yield enhanced electromagnetic near fields and achieve precise and efficient manipulation of nanoparticles at low photon flux. We developed a highly efficient plasmonic optical trap, based on laser-structured silicon samples. Coating the samples with a thin layer of gold or silver results in the spontaneous formation of metallic nanoparticles on the surface. Using the gold/silver-coated nanostructured silicon samples as substrates for plasmonic optical trapping, we were able to trap 400-nm polystyrene beads with an order of magnitude enhancement in the trapping force, compared with conventional tweezers in the absence of the nanostructured substrates. The development of silicon-based plasmonic optical tweezers relies on single-step, maskless, tabletop laser processing of silicon, which is amenable to large-scale fabrication.

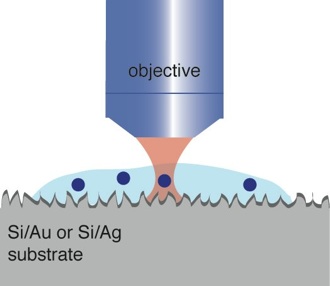

Schematic representation of the optical trap.

Home    Research    Publications    CV

Related publications

D.G. Kotsifaki, M. Kandyla, I. Zergioti, M. Makropoulou, E. Chatzitheodoridis, and A.A. Serafetinides

Applied Physics Letters 101, 011102 (2012)


Back to researchResearch.html

M. Shen, J.E. Carey, C.H. Crouch, M. Kandyla, H.A. Stone, and E. Mazur

Nano Letters 8, 2087 (2008)

Nanostructured optoelectronic heterojunctions

We combine laser-nanostructured silicon substrates with thin layers of semiconducting materials, such as ZnO, to form semiconducting heterojunctions with large surface area. ZnO is a promising n-type semiconductor for optoelectronic applications, due to its wide band gap and efficient UV emission. Because of the difficulty in fabricating p-type ZnO, electronic applications based on this material rely on heterojunctions between ZnO and p-type semiconductors. For this purpose, we employ p-type nanostructured silicon substrates to form heterojunctions with ZnO layers. The electric characteristics of the nanostructured heterojunction are improved by orders of magnitude, compared with the characteristics of flat n-ZnO/p-Si junctions, owing to the increased surface area of the nanostructured device. Laser-microstructured ZnO/p-Si photodetectors demonstrate high sensitivity and broadband operation across the UV-Vis-NIR because they combine the optical properties of ZnO with the NIR absorbance of laser-processed silicon. Our fabrication method is scalable and versatile, does not require additional insulating layers, and can be extended to other combinations of materials.

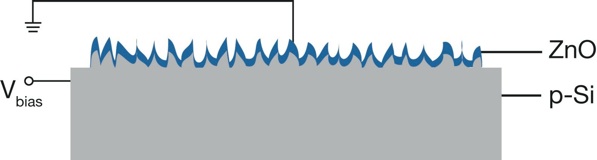

Schematic representation of a nanostructured n-ZnO/p-Si device.
